1U24Port CAT6 CAT6A CAT5E Network Patch Panel Unshielded Keystone RJ45 DustProof
Description
The TW-PN-04-C5E C6 C6A 1U Rack-Mount Shielded Blank Keystone/Multimedia Patch Panel manages and organizes the cabling in your network. The 24 blank cutouts accommodate all Tripp Lite keystone jacks, and some other keystone jacks in the market, including RJ45 Ethernet, HDMI audio/video, voice and USB applications. The rear cable manager keeps cables neat, tidy and efficiently organized on the back of the panel. Ports are clearly numbered to help you identify connections. Mounts easily into 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. Made from fully shielded, heavy-duty steel. Grounding wire included.
| Name | 24Port 1U Rack-Mount Unshielded Blank KeystonenJack Network Patch Panel RJ45 Cat6/Cat6a Cat5e |
| Application | Network Cabling System ; Telecommunication |
| Product Type | Blank |
| Color | Black |
| Technology | Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed) |
| Number of Ports | 24Ports |
| Connecter Type | RJ45 Jacks |
| Connecter Ports | Keystone Jack Cutout |
| Installation | 19''; 24 Ports; 4Groups, 6Keystone Jack/Group |
| Material | SPCC steel with powder coating, Phosphor Bronze, PC. (Injection molding) |
Features
► EASY IDENTIFICATION: Bold numbering of the ports on the front which are organized in groups of 6
► EFFICIENT: High-density 24 port, 1U design provides space efficiency
► SECURE: Rear support bar strengthens the patch panel to provide secure cable management
Product Performance
1. Suitable for horizontal wiring or equipment terminating between devices, as well as mutual matching terminating between centralized points.
2. Rugged and easy design for installation, reduce installation and operation costs, large front label for port identification and easy management. Meet the 19" rack installation standard. Steel frame with injection molding.
3. Material of RJ45 module socket is ABS engineering plastic and polycarbonate, IDC cable clamp is phosphor bronze.
4. Suitable for 22, 24 and 26AWG (0.64, 0.5 and 0.4mm) cable; Life span is 250.
5. Standard T568A and T568B.
6. Standard type 110 wire punching tool.
Main Technical Parameters
| IDC | Phosphor Bronze, Silver Plating (20~50uiLZh) |
| Suitable Cable: 22, 24 and 26AWG (0.64, 0.5 and 0.4mm) | |
| Life Span: ≥ 250 | |
| contact pin | Phosphor Bronze |
| Gold Plating (20~50uiLZh) | |
| Pin and Socket can be repeatedly use: ≥ 750 | |
| Flame Resistance | PPO+PC (Injection molding) ; ISO |
| Contact Resistance | ≤ 2.5m Ω (Normal atmospheric pressure; No bulk resistor) |
| Insulation Resistance | ≥ 1000MΩ (Normal atmospheric pressure) |
| Dielectric Intensity |
DC 1000V (AC, 700V); No breakdown and flashover within 1min |
| Standard |
ISO/IEC11801; TIA/EIA568 |
Application
► Manages and organizes input and output cable connections in your network.
► Customizable solution for a variety of applications, including Ethernet, voice, audio/video and USB.

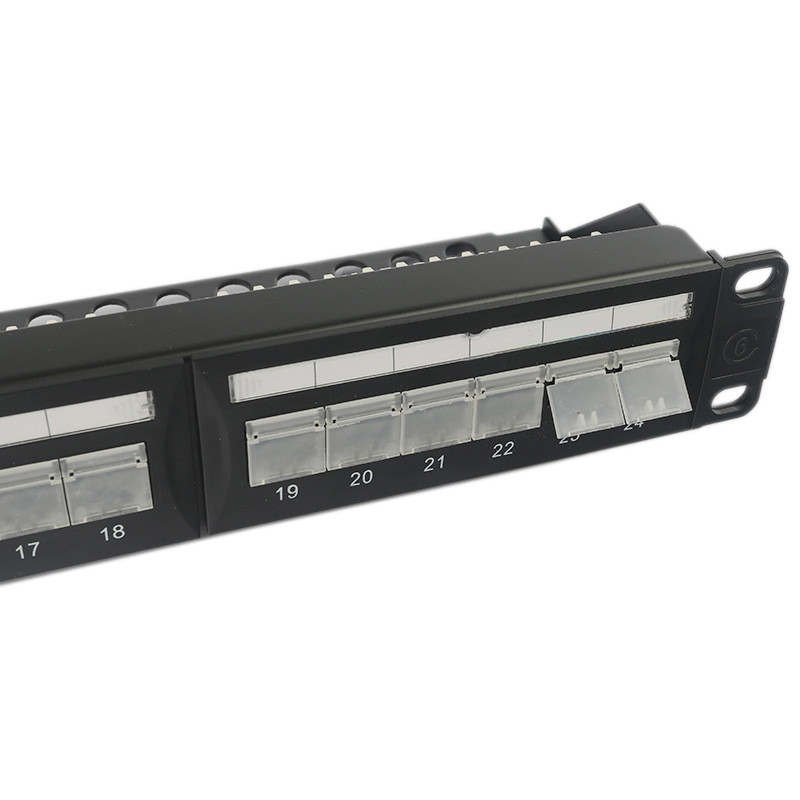

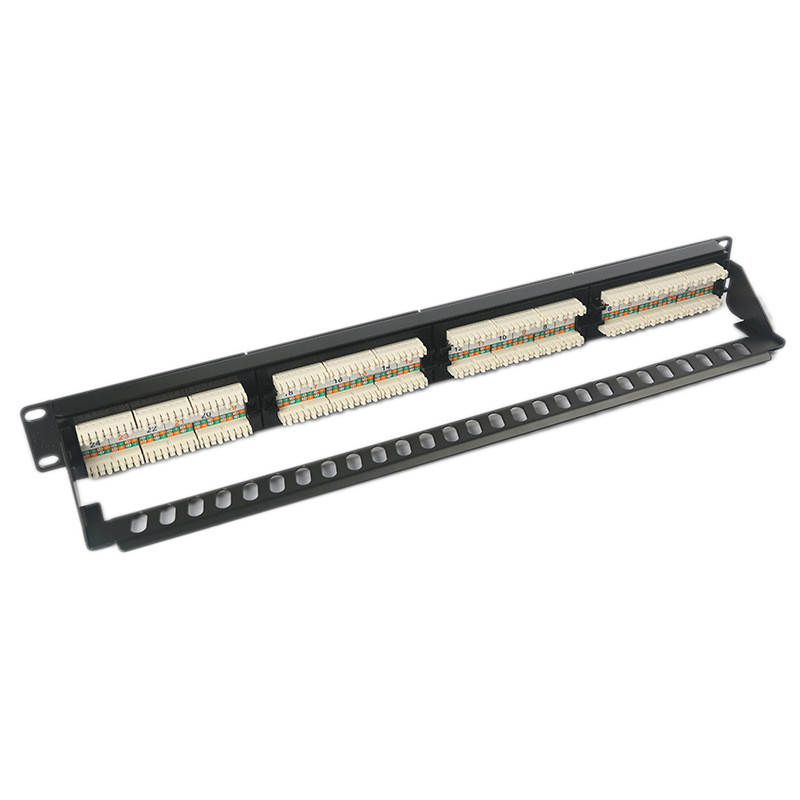

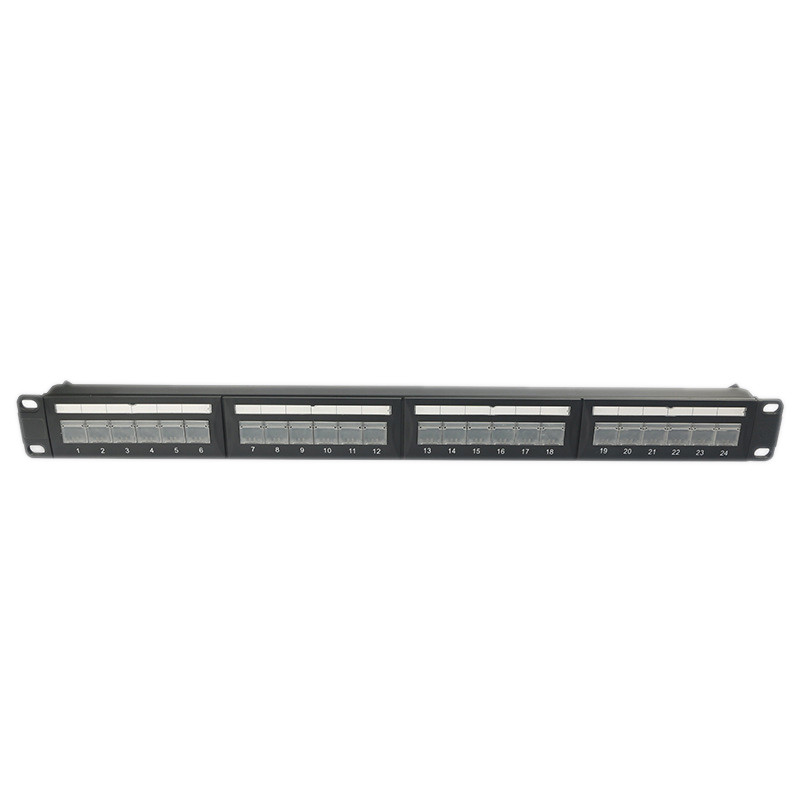

Details Picture
