24Port CAT5E CAT6 UTP Network Patch Panel Blank 1U Keystones Black RJ45
Description
The TW-PN-01-C5E C6 1U Rack-Mount Shielded Blank Keystone/Multimedia Patch Panel manages and organizes the cabling in your network. Each port of CAT6 24-Port unshielded network patch panel has a number and a blank label for easy cable identification and management. Support Krone and 110 wiring modes: In line with TIA/EIA568-B, EN50173 and ISO/IEC11801 standards, fully support all voice communication systems, 10Base-T, 16Mbps, 100Base-T, 155Mbps and 622MbpsATM, 1000Base-Tx, multimedia and other aspects of high-speed applications.
| Name | 24Port 1U Rack-Mount Unshielded Blank Keystone Jack Network Patch Panel RJ45 Cat6 Cat6A |
| Application | Network Cabling System ; Telecommunication |
| Product Type | Blank |
| Color | Black |
| Technology | Cat5/5E; Cat6; Cat6A; Display Port; HDMI; USB 2.0 (High Speed) |
| Number of Ports | 24Ports |
| Connecter Type | RJ45 Jacks |
| Connecter Ports | Keystone Jack Cutout |
| Installation | 19''; 24 Ports; 4Groups, 6Keystone Jack/Group |
| Material | SPCC steel with powder coating, Phosphor Bronze, PC. (Injection molding) |
Features

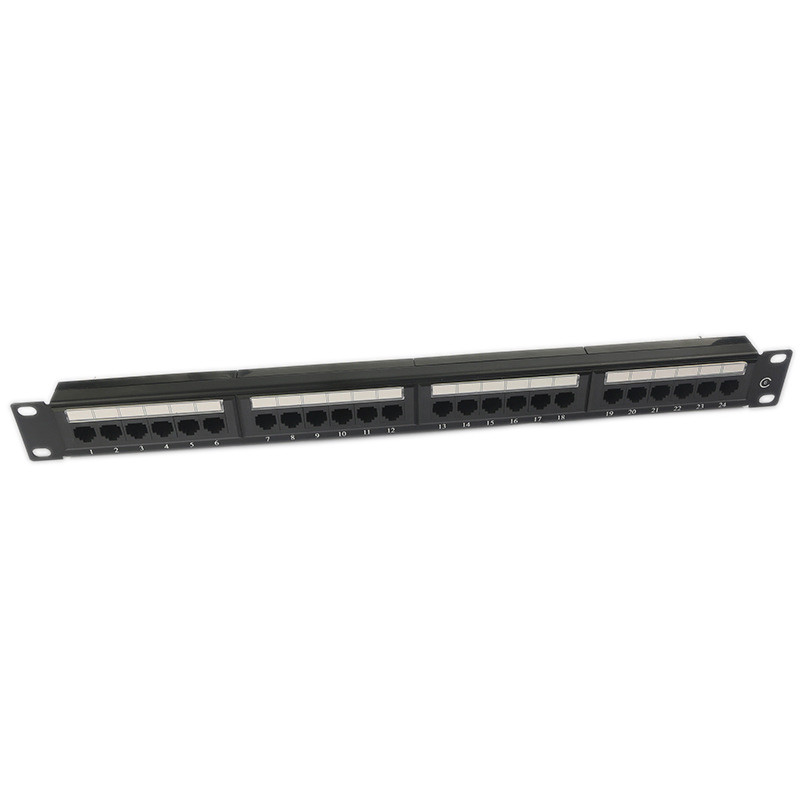

► EASY IDENTIFICATION: Bold numbering of the ports on the front which are organized in groups of 6
► EFFICIENT: High-density 24 port, 1U design provides space efficiency

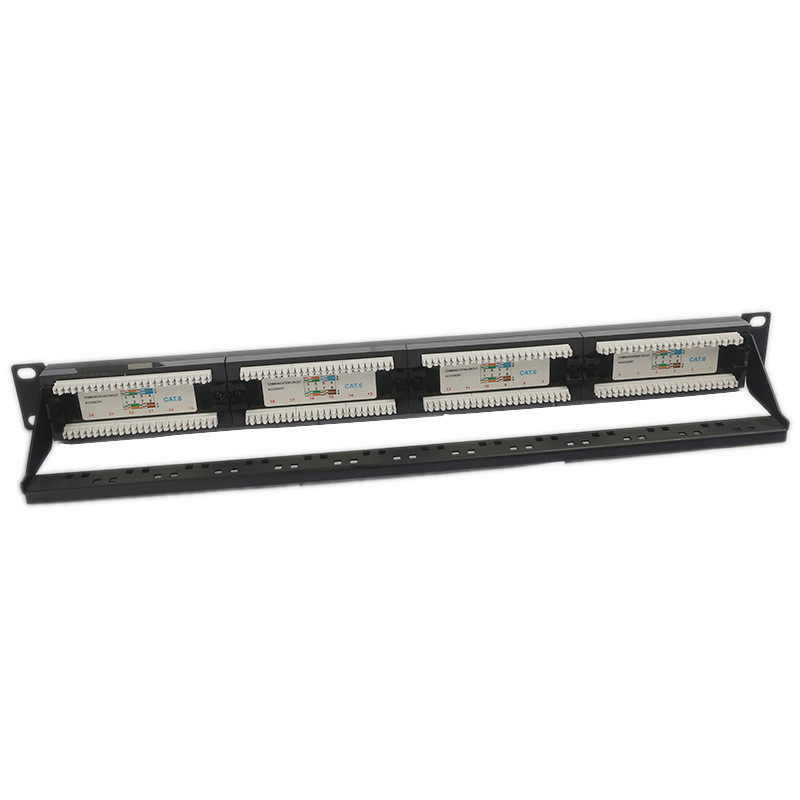

► SECURE: Rear support bar strengthens the patch panel to provide secure cable management
► SPECIAL MODULE: Front Removable Module Design
♦ The empty patch panels are available to snap in by Cat
♦ 5e and cat6 and Cat 6A keystone jacks or couplers
♦ Label and inlaid marks are available for the identification of cabling management
♦ Not included the module in the packaging
♦ Snap-in structure, easy to install and unload the module
Product Performance
1. Suitable for horizontal wiring or equipment terminating between devices, as well as mutual matching terminating between centralized points.
2. Rugged and easy design for installation, reduce installation and operation costs, large front label for port identification and easy management. Meet the 19" rack installation standard. Steel frame with injection molding.
3. Material of RJ45 module socket is ABS engineering plastic and polycarbonate, IDC cable clamp is phosphor bronze.
4. Suitable for 22, 24 and 26AWG (0.64, 0.5 and 0.4mm) cable; Life span is 250.
5. Standard T568A and T568B.
6. Standard type 110 wire punching tool.
7. Apply to cabinet cabling and network engineering.
Main Technical Parameters
| IDC | Phosphor Bronze, Silver Plating (20~50uiLZh) |
| Suitable Cable: 22, 24 and 26AWG (0.64, 0.5 and 0.4mm) | |
| Life Span: ≥ 250 | |
| Contact Pin | Phosphor Bronze |
| Gold Plating (20~50uiLZh) | |
| Pin and Socket can be repeatedly use: ≥ 750 | |
| Flame Resistance | PPO+PC (Injection molding) ; ISO |
| Contact Resistance | ≤ 2.5m Ω (Normal atmospheric pressure; No bulk resistor) |
| Insulation resistance | ≥ 1000MΩ (Normal atmospheric pressure) |
| Dielectric Intensity |
DC 1000V (AC, 700V); No breakdown and flashover within 1min |
| Standard |
ISO/IEC11801; TIA/EIA568 |
Application
► Manages and organizes input and output cable connections in your network.
► Customizable solution for a variety of applications, including Ethernet, voice, audio/video and USB.

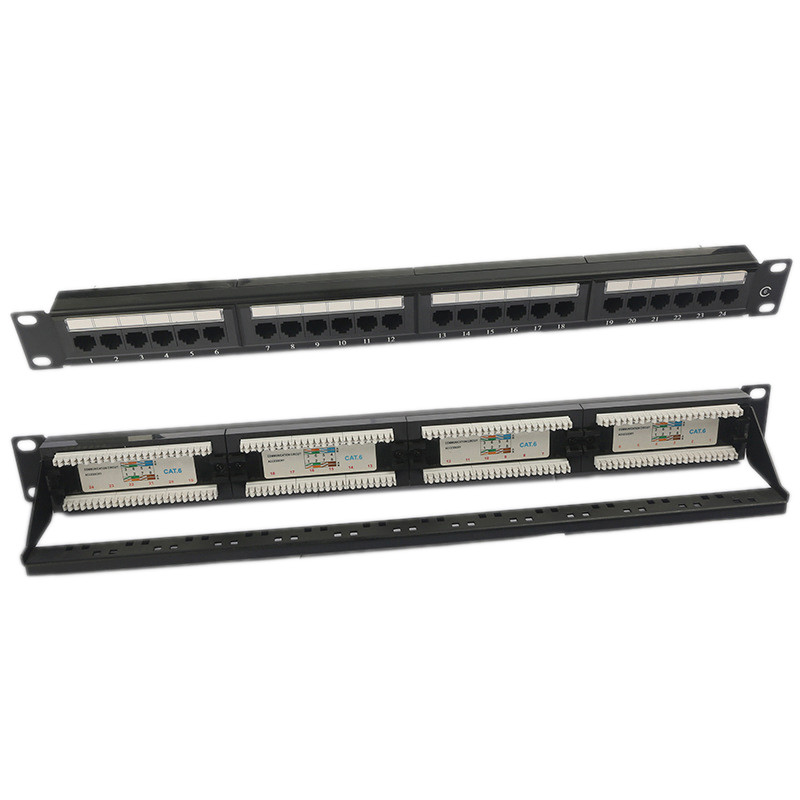

Details Picture
FAQ
► What’s your advantage? Why we choose you?
1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.
2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.
3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
► What’s the Payment?
T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.
► Are you a factory or trading company?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
► How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
► When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
► How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
