HUAWEI MINI Fiber Optic Terminal Box 16Core SC IP65 PC+ABS FTTX Solutions

16Core Fiber Optic Terminal Box With HUAWEI MINI SC IP65 PC+ABS FTTx Solutions

Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

► Total enclosed structure.
► Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
► Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
► Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
► Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
► Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.

Specification

1. Environmental requirement

2. Main technical datasheet

3. Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2x10⁴ MΩ/500V(DC); IR≥2下0⁴ MΩ/500V;

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V.

Configuration table

                           Pic 1 Box Size                                                          Pic 2 Installation Size

Product Cable Ways (Pic 3)

                                                                  Pic 3 Cable Ways

Installation

1. Wall-mounted installation

Drill 3 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten. (Pic 4)

Pic 4 Wall Mounted Installation

2. Pole-mounted installation

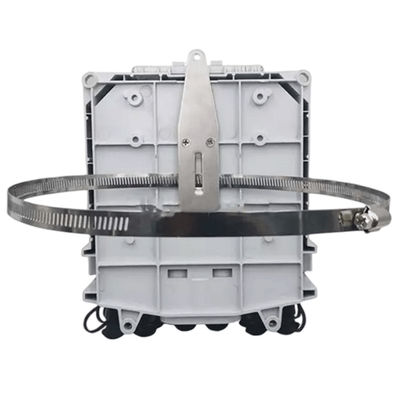

Fix 1 set of the pole ring to the telecom pole. (Pic 5)

Pic 5 Pole Mounted Installation

Accessories

1. Users' Manual *1

2. Key *1

3. Accessories Bag *1

4. Pole Ring *1 (Option)

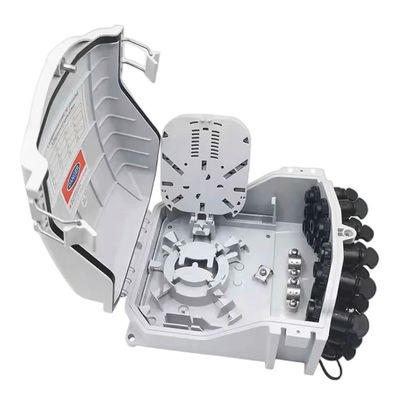

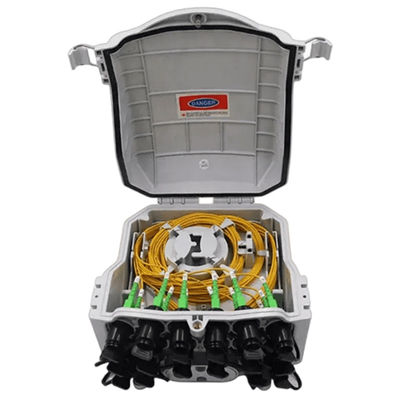

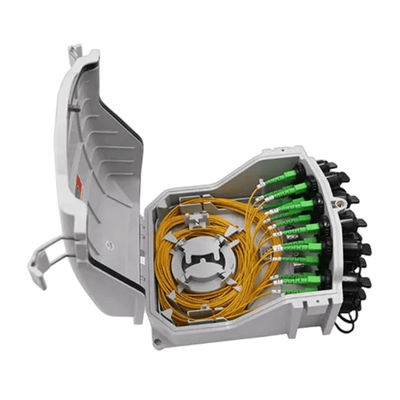

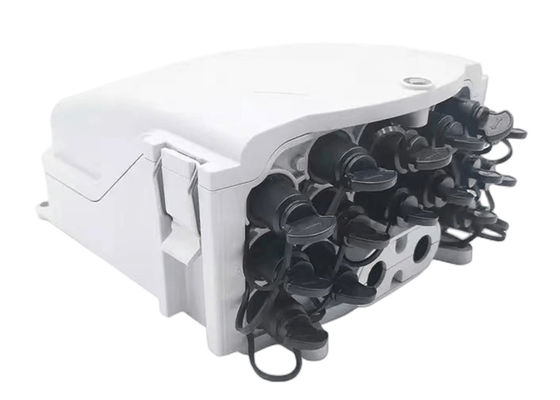

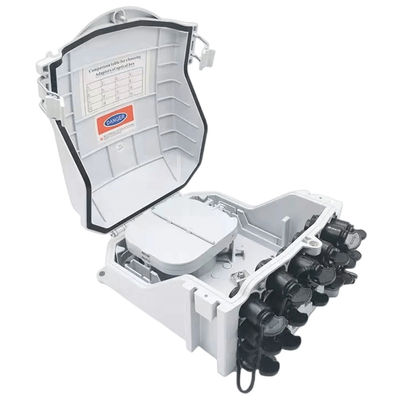

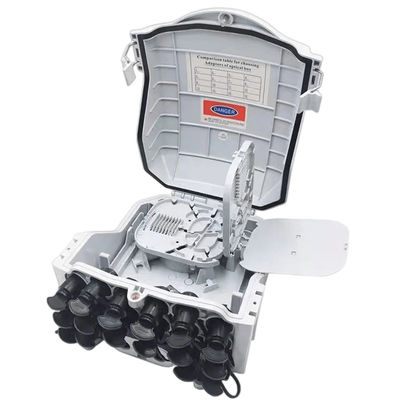

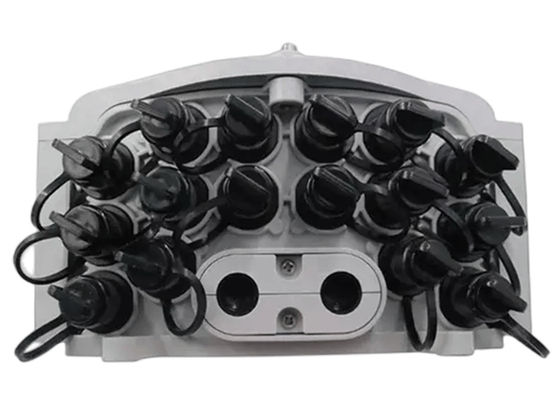

Details Picture

FAQ

► What’s your advantage? Why we choose you?

1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.

2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.

3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.

► What’s the Payment?

T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.

► Are you a factory or trading company?

We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

► How can I get some samples?

We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.

► When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

► How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.

You can use your own express account or prepay us if you do not have an account.
