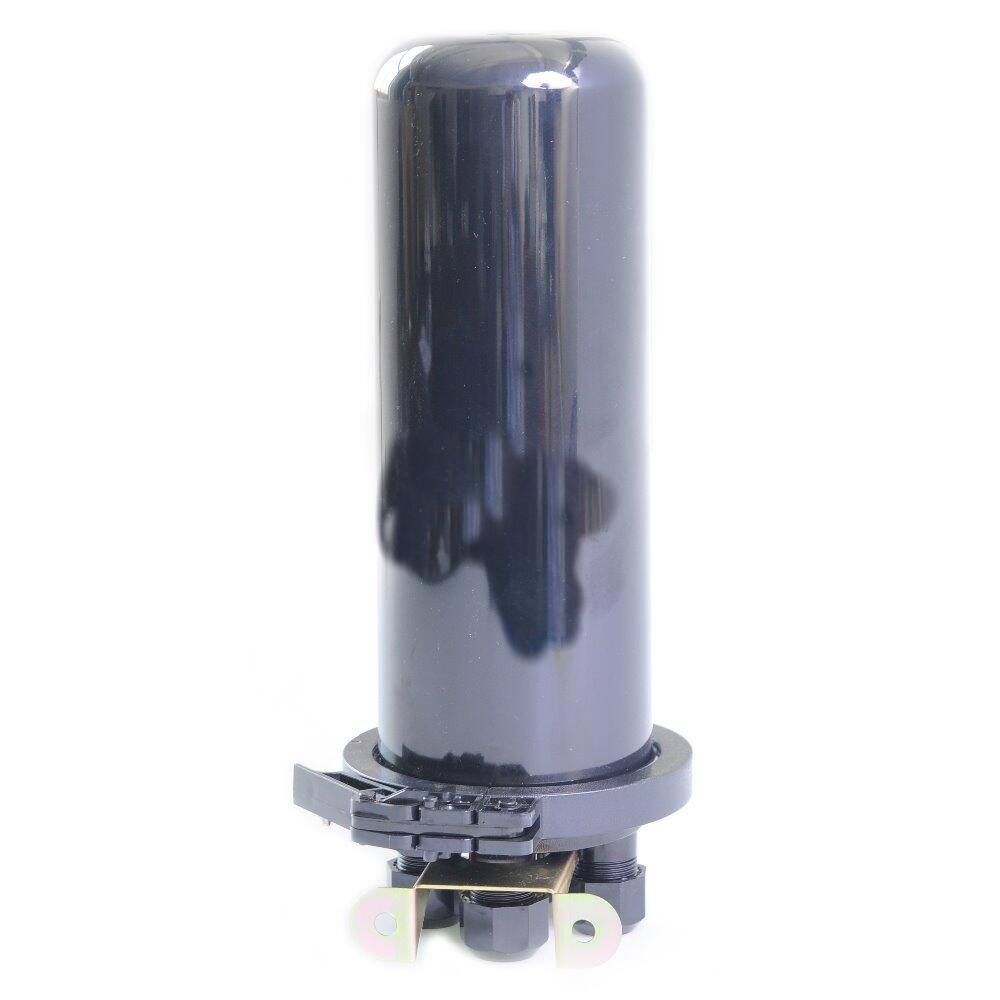

96 Core Fiber Optic Splice Closure Outdoor Fiber Optic Joint Closure Box
Product Description
FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.
Features
1. Mechanical sealing structure.

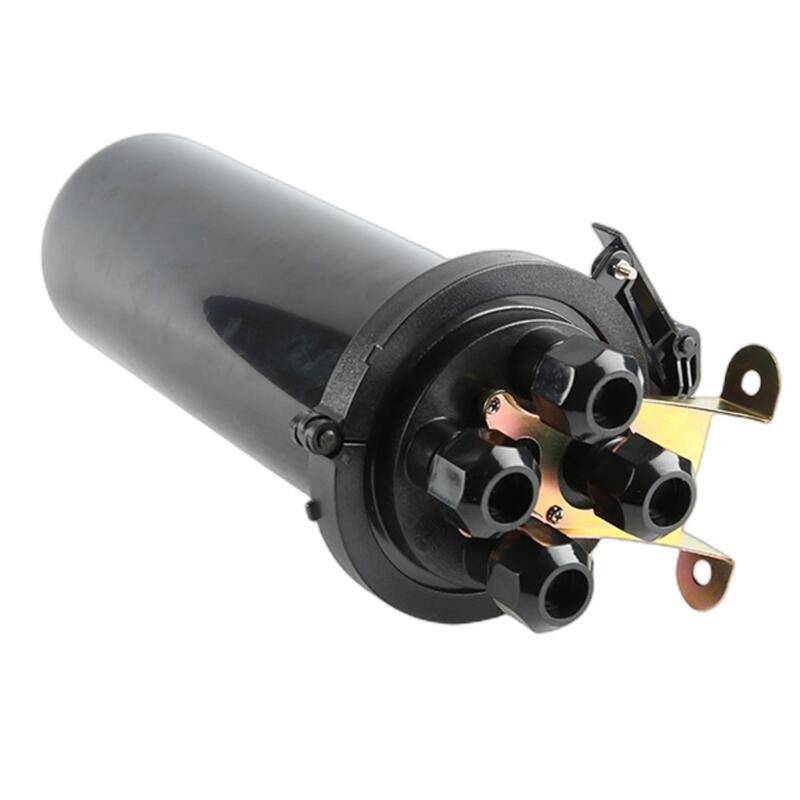

2. High quality industrial plastic body material 4 round holes for cable entrance
3. Suitable for cable diameter 18mm
4. Support aerial,underground,pipeline,man holes,hand holes Protection level reaches IP68

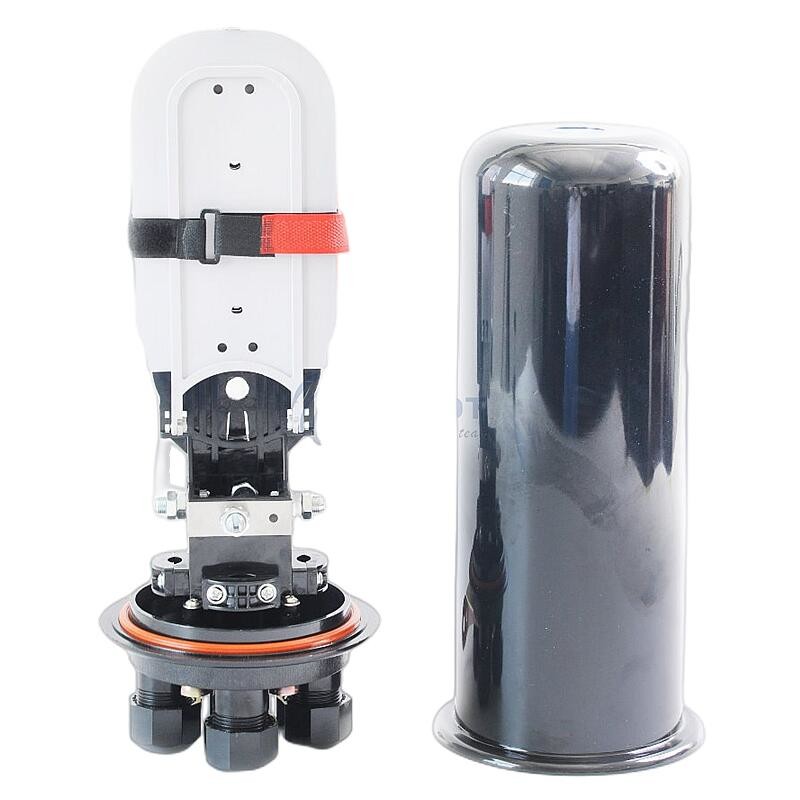

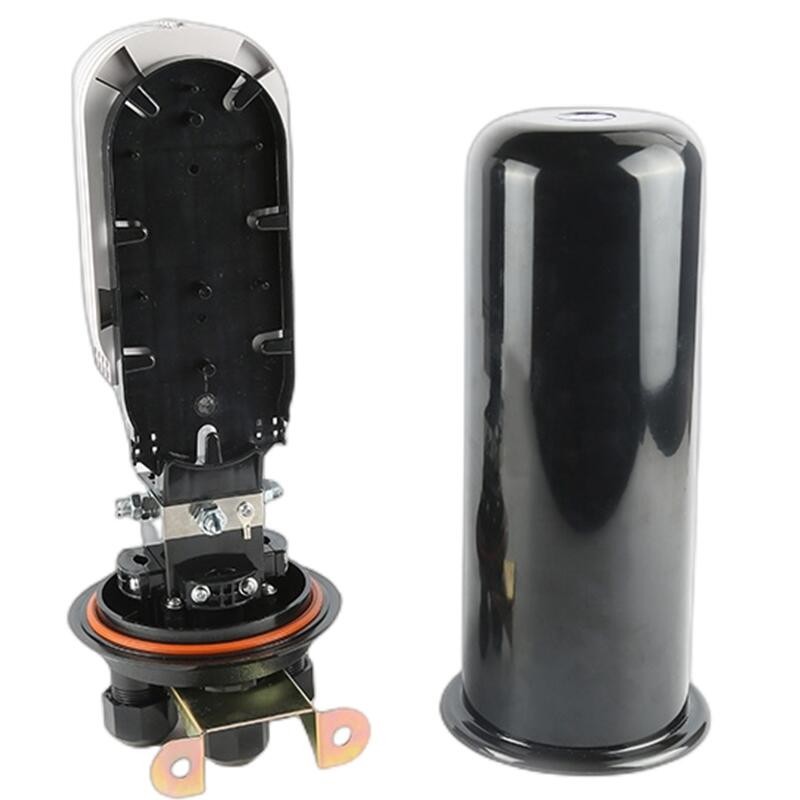

5. 360 degrees access, fiber bending > 40mm Maximum capacity: 96 fibers.
6. Number of splice trays: 4 pcs x 24F
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | GJS-D007 |
| Type | Dome type |
| Sealing Structure | Mechanical Seal |
| Number of Inlet/Outlet ports | 4 ports |
| Cable Diameter | 18mm |
| Maximum Capacity | 96 fibers |
| Capacity per Splice Tray | 24 cores |
| Quantity of Splice Tray | 4pcs |
| Body Material | PC |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 395(H)×190(D)mm |
| Net Weight | 3~3.6KG |
| Temperature | -40℃~65℃ |
