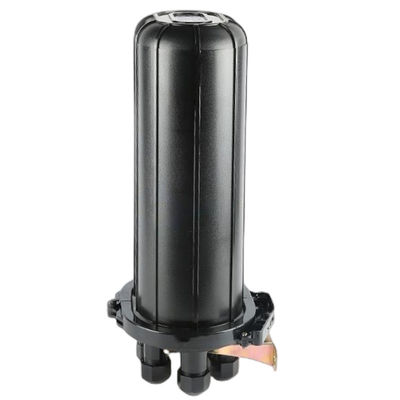

Dome Type Aerial 6 Port Fiber Splice Closure 240 Cores Optical Fiber Joint Enclosure Mechanical Seal
Product Description

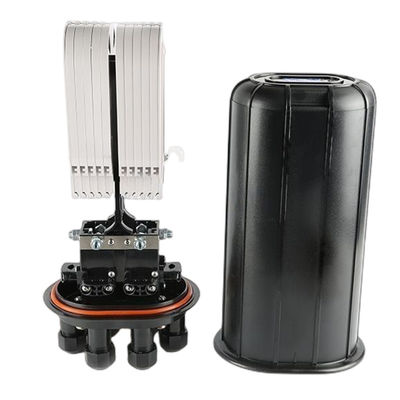

Vertical Fiber Splice Closure240 Core . It features a dome structure , 6 mechanicallysealed cable entry portsThis vertical fber splice closure 240 core is suitable foraerial , duct , or buried applications in fiber cable accesslinesWith 10 pieces of 24 fiber optic splice trays assembled , thisvertical dome fiber optic splice enclosure couldaccommodate up to a total of 240 core hber splices .Our 240 core vertical fber splice closure is easy to open ,seal , no special tools are required . The fiber optic splicetrays are easy to increase or reduce for flexible heldoperationsHigh-strength PC engineering plastic is used , ensuringperfect performance in anti-aging and harshenvironments
Features
1. Aerial , underground mount fber optic splice closure , 240 core
2. 6 cable inlets / outlets , mechanically sealed by screws
3. PC material , high strength , anti-aging , anti UV
4. Long-lasting sealing , excellent resealing performance
5. Vertically mounted , easy to operate
6. Reasonable design , easy to open and seal
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | GJS-D009 |
| Type | Dome type |
| Sealing Structure | Mechanical Seal |
| Number of Inlet/Outlet ports | 6 ports |
| Cable Diameter | 8-21mm |
| Maximum Capacity | 240 fibers |
| Capacity per Splice Tray | 24 cores |
| Quantity of Splice Tray | 10pcs |
| Body Material | PC |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 455(H)×220(D)mm |
| Net Weight | 3~3.6KG |
| Temperature | -40℃~65℃ |
