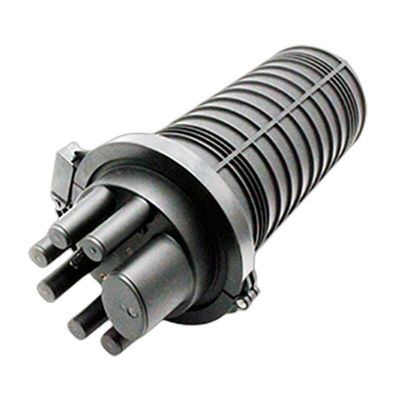

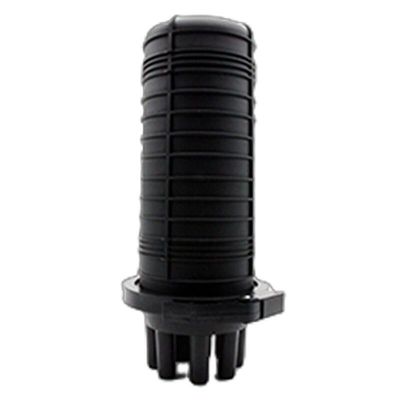

Waterproof Vertical Type Splice 72 Core Fiber Optic Splice Joint Closure
Product Description
Fiber Optic Splice Closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. It can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment.
Features
1. Heat-Shrinkable sealing structure.
2. High quality industrial plastic body material
3. 1 oval hole and 6 round holes for cable entrance
4. Suitable for cable diameter 7mm-20mm
5. Support aerial,underground,pipeline,man holes,hand holes
6. Protection level reaches IP68
7. 360 degrees access, fiber bending> 40mm
8. Maximum capacity: 72 fibers.

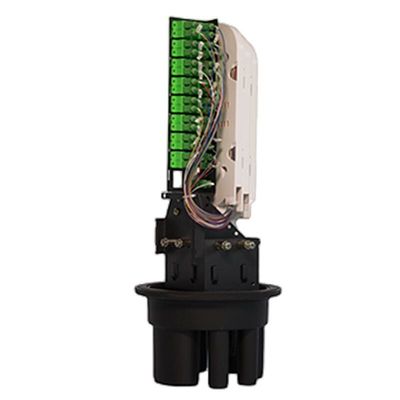

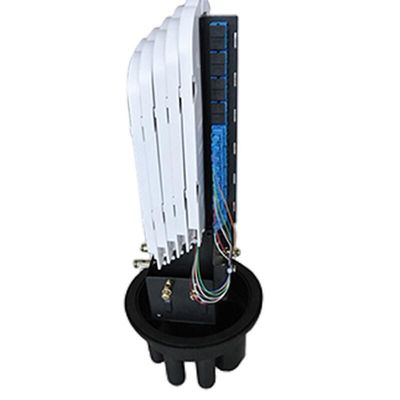

9. Number of splice trays: 3 pcs x 24F
10. PLC splitters : 1x8 2PCS/1x16 1PCS
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | TW-GJSM7/RS-A-SC16 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 7 ports |
| Cable Diameter | 7-20mm |
| Maximum Capacity | 72 Cores |
| Capacity per Splice Tray | 24 Cores |
| Quantity of Splice Tray | 3pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 440(H)×230(D)mm |
| Net Weight | 3~3.6KG |
| Temperature | -40℃~65℃ |
