Fiber Outdoor 288 Core Pedestal Mounted Fiber Distribution Cabinet Sc/Apc Connectors
Description:
Cabinet Outdoor 288 Core fiber optic can be applied in active link with trunk optical cables and cable distributions, accomplishing fusion, storage, distribution, and dispatch for the cables.
Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material (Stainless Steel), with protection reaching IP65 grade. Adapting various bad weather conditions, with reliable sealing, water-proof and dampproof.
1. Specification
|
Parameters |
|
|
Model |
TW-CBSMC-288C |
|
Max. No. of Cores |
288 Core SC,FC,ST Simplex Fiber or 576 LC Fibers |
|
Splitter Type |
ABS Box Type |
|
Max. No. of Splitters |
10 |
|
Splice Tray Type |
12 cores/tray or 24 cores |
|
Max. No. of Splice Tray |
24 or 24 |
|
Cabinet Material |
SMC |
|
Adapter Panel |
FC Square, SC, DLC (SC type) |
|
Insulation Resistance (MΩ) |
1000 @500V (DC) |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Ground |
|
Protection Rating |
IP65 |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
1450*750*320MM |
|
Weight (kg) |
80 |
Advantages
1. Total Fiber Management Systems for up to 288 fibers
2. Space for excess patch cables
3. High Density
4. Splice and patch in one tray
5. Cater for all connector type
6. Individual slide out splice organizer trays provide
7. Easy access to splices
8. Proper strain relief for incoming cables
9. Good appearance
10. Ultra Violet resistance
11. Resistance to corrosion and most of the chemical
12. Substances
13. Very high resistance to impact
14. Mountable on concrete or polyester plinth
Service conditions
1. Working temperature: ―5℃～+40℃ (indoor), ―40℃～+60℃ (outdoor)
2. Relative humidity: ≦85% (at +30℃) (indoor), ≦95% (at +40℃) (outdoor)
3. Atmospheric pressure: 70kPa～106kPa
Suitability requirements
1. The optical fiber cables shall conform to Standard GB/T7424 and GB/T11819.
2. The nominal operating wavelength is: 1310nm, 1550nm.
Mechanical strength
The fiber optic cross connect cabinet appearance can stand at least 980N of pressure vertical to the appearance. After the cabinet door is opened, it can stand at least 200N pressure from the most outer end of the door.
Sealing performance
The cabinet is in locked state. The protection performance of indoor equipment can reach the requirements of IP53 as specified in GB4205, and that of outdoor type can reach the requirements of IP65 as specified in GB4208.
Applications:
1. Communications
2. Networks
3. Industrial control
4. Building automation
5. Connector insertion and durability> 1000 times

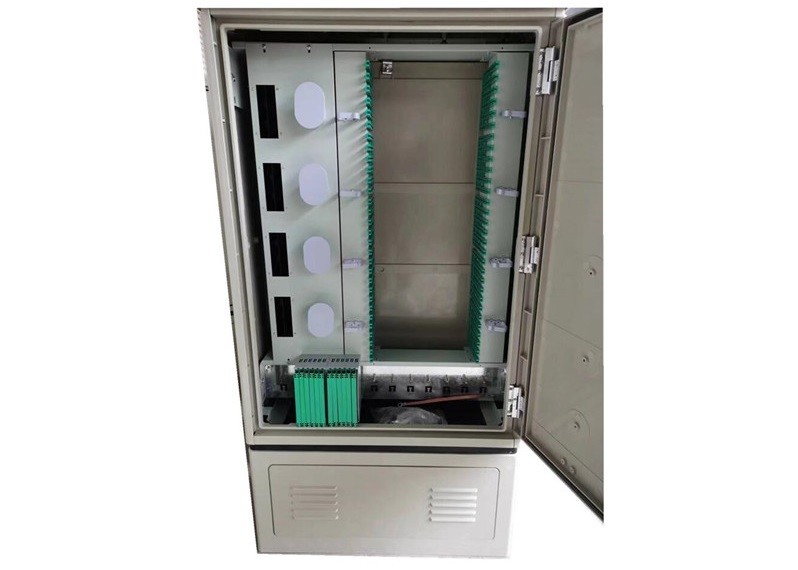

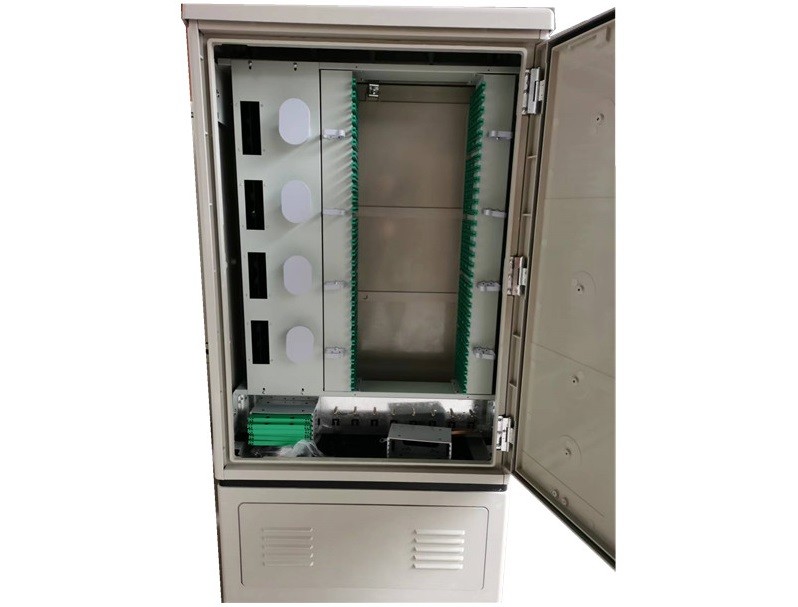

More photos for reference:
