12Cores 1*8 PLC Fiber Optic Splitter Box SC/LC/ST/FC IP65 Wall-mounted
Description
Twilight Fiber Optical Terminal Box, 12 Cores FTTH Box, 1*8 PLC Distribution Box.
FDB-8A fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 12Core Optical Terminal Box FTTH ABS PLC Enclosure |
| Use | FTTH FTTX Solutions |
| Material | PP+ABS |
| Color | White |
| Suitable Adapter | SC/LC/ST/FC |
| Fiber Type | SM/MM (OM1, OM2, OM3, OM4) |
| Waterproof Level | IP65 |
| Operating Temperature | -40 - +75℃ |
|
Dimension |
255*225*75mm |
| Weight | 1kg |
Features
♦ Waterproof Design with IP-65 Protection Level.
♦ High strength plastic, anti-ultraviolet radiation.
♦ Integrated with Splice Cassette and Cable Management Rods.
♦ Manage fibers in a reasonable fiber radius conditiom.
♦ Easy to maintain and extend the capacity.
♦ 1*8/1*4 Splitter can be installed as an option.
♦ Efficient cable management.
♦ The box with ‘Lock’, box of body switching of simple, convenient, with a lock function safe use.
♦ For indoor and outdoor aerial and wall use.
♦ Entry and exist cable ports all use waterproof joints.
Configuration
|
Material |
PP+ABS |
|
Size |
255*225*75mm |
|
Max Capacity |
SC 12Port |
|
LC 24Port |
|
|
LGX PLC 1*8 (SC) |
|
|
Weight |
1kg |
|
Color |
White |
Package Includes
♦ 1Piece Splitter Box
♦ 4Piece Cable Tie
♦ 3Piece Expansion Screw
♦ 3Piece Fixing Screws
♦ 1Piece Key

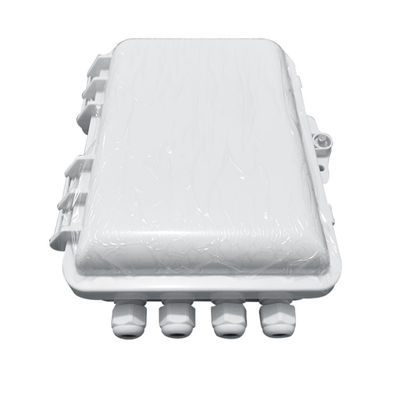

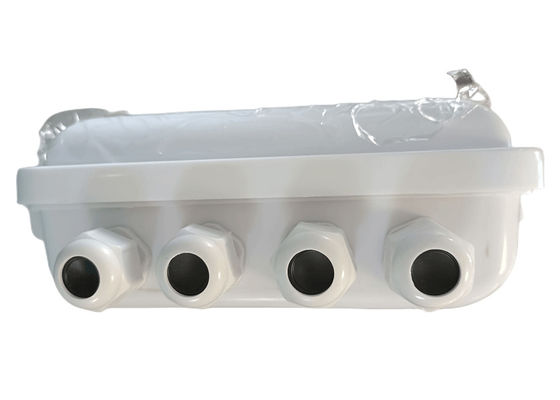

Details Picture
Company profile
Twilight Optic established in 2012, is a professional hi-tech enterprise engaged in manufacture and distribution of fiber optic products. Main products including Fiber-optic Cables , Patch Cords, Fiber Optic Pigtails , MTP MPO solution , Fiber optic accessories, FTTH Box , Fiber optic Cabinet, Media Converter , Fiber optic Machine , and Toolkits ,Splice Closure,PLC Splitters ,which are applicate in Fiber optic telecommunications, LAN,FTTH,CATV & CCTV,High Speed Transmission system.
