96Cores 16Port Fiber Optic Terminal Box SC/LC/ST/FC IP68 Wall-mount/Pole-mount
Description

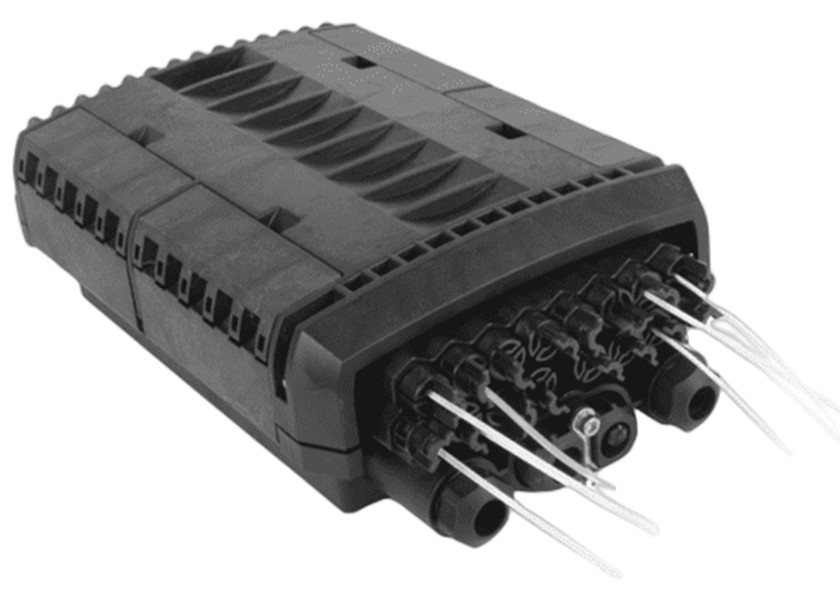

FATC-001 fiber access termination closure is able to hold up to 16-24 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 16Port 24Adapter 96Cores FATC Terminal Distribution Box |
| Use | FTTH Solutions |
| Mounting Type | Wall-mount/Pole-mount |
| Adapter Type | SC/LC/ST/FC |
| Material | Strengthen Polymer Plastic |
| Color | Black |
| Waterproof Level | IP68 |
| Environmental Temperature | -40℃ - +65℃ |
| Impact Test | IK10 |
| Pull Force | 100N |
Features
► Water-proof design with IP-68 Protection level.
► Integrated with flap-up splice cassette and adaptor holder.
► Impact test: IK10, Pull Force: 100N, Full rugged design.
► All stainless metal plate and anti-rusting bolts, nuts.
► Fiber bend radius control more than 40mm.
► Suitable for the fusion splice or mechanical splice.
► 2 pcs of 1*8 Splitter can be installed as an option.
► Mechanical sealing structure and mid-span cable entry.
► 16 ports cable entrance for drop cable.
► 24 adaptors for drop cable patching.
Configuration
|
Type
|
TW-FATC-001-16 |
|
Material
|
Strengthen Polymer Plastic |
|
Size
|
385*245*130mm |
|
Max Capacity |
Splice 96 Fibers (4trays, 24fibers/tray) |
|
PLC Splitter 2pcs 1*8 |
|
|
Nos of Adaptor |
24pcs of SC |
|
Weight |
4.5kg |
|
Color |
Black |
Applications
► Wall mounting and pole mounting installation.
► FTTH pre-installation and filed installation.
► 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.
Standard Accessories
► Splice cassette and cable management tool
► Installation nuts and bolts
► Protection sleeves
► Hose clamp
► Cable tube
► Wreach
► Cover holder
► Rubber seal for cable entrance
Optional Accessories
► Pole ring
Details Picture
