FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68

Negotiate
MOQ
Negotiate
Price
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 288Cores Fiber Access Terminal Closure
Use: FTTH FTTx Solutions
Installation Way: Wall-mounted/Pole-mounted
Waterproof Level: IP68
Environmental Temperature: -40℃ - +65℃
Optical Performance: No Significant Additional Attenuation
Material: PC
Dimension: 395×245×130MM
Highlight:

FTTH Wall Mounted Fiber Termination Box

,

Wall Mounted Fiber Termination Box 288Cores

,

Pole Mounted Box IP68
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FATC-004-288
Payment & Shipping Terms
Packaging Details: 4 pcs/ Carton, Size:53x43x38cm, G/W:20.5KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

288Cores Fiber Optic Termination Box Wall-mounted/Pole-mounted IP68 Black


Description


FATC-004 is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Name 288Cores Fiber Access Terminal Closure
Use FTTH FTTx Solutions
Installation Way Wall-mounted/Pole-mounted
Waterproof Level IP68
Environmental temperature -40℃ - +65℃
Optical performance No significant additional attenuation
Material PC
Dimension 395×245×130MM
Adapter Type SC/LC/FC/ST
Color Black
Application Type Outdoor/Indoor



Specification



 Dimension(mm)

 395×245×130

 Weight(kg)

  5


 Sealing type


  Mechanical


 Max. capacity (Single fiber)


  288
 Cable ports
 1 input cable port for un-cut cable from diameter from10~17.5mm.
 6 output cable ports for cable diameter from 8~17.5mm.

 Single splice tray capacity
 (Single fiber)

  24


 Splice tray quantity


  1-12


 Insertion loss


  <0.2dB




Packing, transportation and storage

► This equipment packaging is moisture-proof and earthquake-proof. The accessories are packed first plastic
bags, then into the boxes with plastic bags for sealing. There are moisture-proof and earthquake direction signs
outside the boxes.

► It can’t be inverted in the transport and be free from rolling when carrying. Please load carefully and
prevent the collision. You should prevent it from heavy rain before installation. The temperature in the
transport should be controlled between-35℃ to +55℃.

► The excessive accumulation of goods should be stored on the cartons. The treasury should away from the
erosion of corrosive gas equipment and the temperature should be below 45℃ and higher than -5℃, and
relative temperature should not be high in long-term(generally less than 75%).

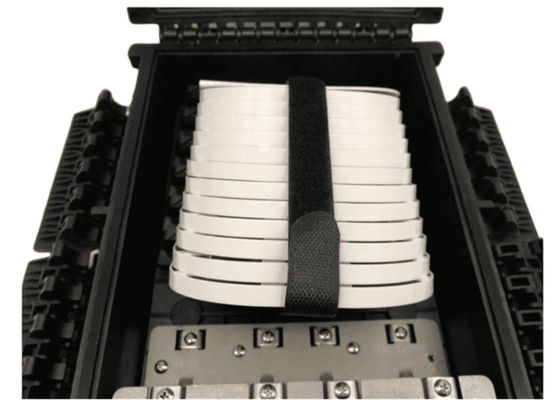

Details Picture

FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 0
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 1
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 2
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 3
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 4
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 5
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 6
FTTH Wall Mounted Fiber Termination Box 288Cores Pole Mounted Box IP68 7


Company profile

Twilight Optic established in 2012, is a professional hi-tech enterprise engaged in manufacture and distribution of fiber optic products. Main products including Fiber-optic Cables , Patch Cords, Fiber Optic Pigtails , MTP MPO solution , Fiber optic accessories, FTTH Box , Fiber optic Cabinet, Media Converter , Fiber optic Machine , and Toolkits ,Splice Closure,PLC Splitters ,which are applicate in Fiber optic telecommunications, LAN,FTTH,CATV & CCTV,High Speed Transmission system.
