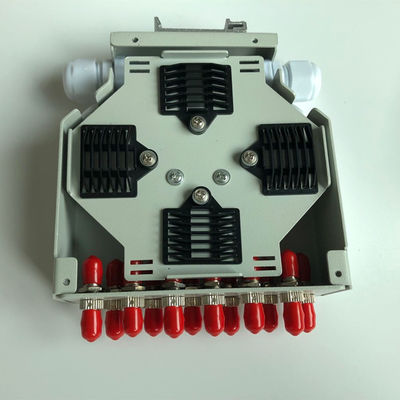

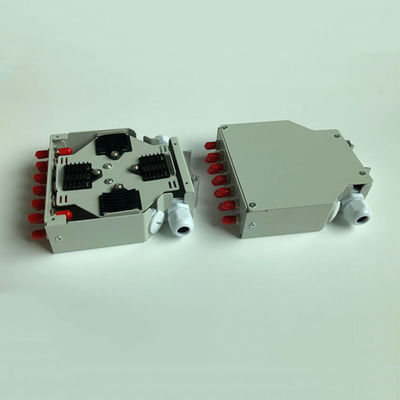

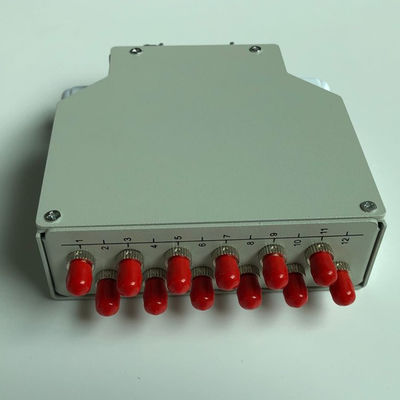

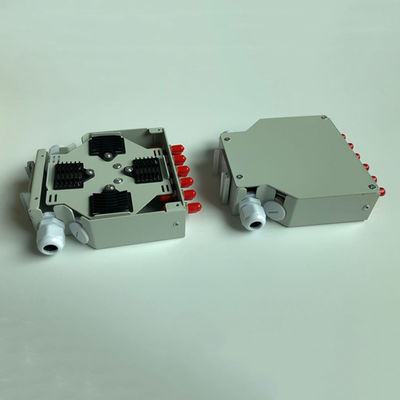

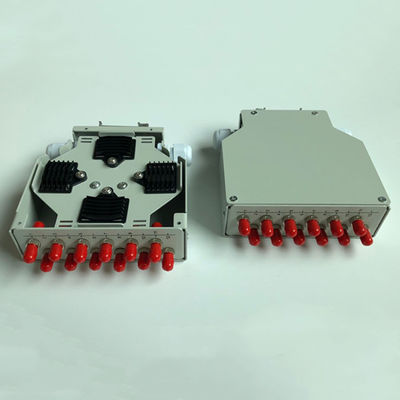

12 Port DIN rail mounted Fiber Optic DIN Rail Terminal Box With ST Adapter
DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of
optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables,
patch cores or pigtails are connected.
Quick infomation:
| Name | Din rail (type) fiber optic splice terminal box. |
| Model | TW-DRB02-12STSX |
| Cable port | 2 cable ports |
| Suitable cable diameter | 8~24mm |
| Adapter ports | 12 adapter ports |
| Suitable adapter type | ST simplex adapter ( Single mode, Multimode, OM3, OM4 ) |
| Splice capacity | 12 cores |
| Size | 129x130x40mm |
| Weight | About 0.8kg |
Fearure:
- Cold-roll steel, electrostatic painting
- Suitable for different adapters: FC, SC, ST, LC …
- 2 pcs cable entry/exit ports; 4, 6, 8, or more pigtail entry/exit ports
- Max. 4, 6, 8, or more adapters can be loaded
- Integrated splice holders (fusion splices)
- IP20 protection

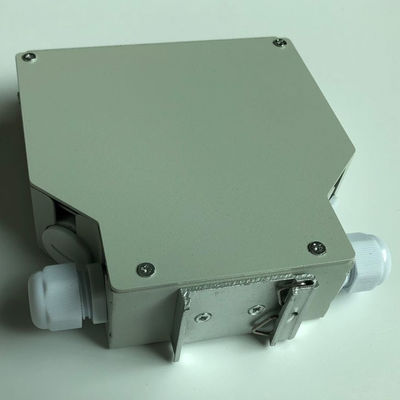

- Rear or aside DIN rail fixation
- 2 rear entries (PG 11 cable gland)
- Grey color
Application:
- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV etc.
