144 Port SMC SC UPC APC Outdoor Telcom Fiber Optic Cabinet 144 Core
1. Descriptions of products:
Cross connection
Cabinet is used for connecting trunk and distributing optical fiber cable.it carries out the function of splicing storage and distribution, it is mainly used in the CATV.
Telecommunication equipment room and network equipment room.
| Type | Size mm |
| Wall Mount 96Cores | 630*440*270mm |
| Floor Standing 96cores | 830*440*270mm |
| Wall Mount 144 cores | 770*540*300mm |
| Floor Standing 144 cores | 1030*540*300mm |
| Floor Standing 288 cores | 1450*750*350mm |
| Floor Standing 576 cores | 1450*750*520mm |
2. Structure Characteristic:
1. Modular design provides the largest flexibility, satisfy the needs of the present and future development
2. The body using the SMC or stainless steel and surface using electrostatic spray so it has good corrosion resistance and anti-aging function, the wind protection class of the body achieves the IP66 level.
3. The effect of defense dewing is excellent.
4. The module tray can spin out of 90 degrees around the axis in the left front, and the bevel of the adapters within the module takes on 30 degrees. The clip-locked installation ensures the bending radius of the fiber directly and prevents the eyes from injury.
5. Weld disk can spin out of 90 degrees, and then draw out, so its convenient to construction, and also convenient to expansion and maintenance cross connection cabinet has doors in the front and back, have ample space for cabling, convenient to operation and maintenance cross connection cabinet has reliable device for fastness, peeling and grounding of the optical cables Insulation resistance between high voltage protection earth and box20,000MΩ /500V (DC)
6. Bearing pressure voltage> 3000VAC (50Hz) 1min not breakdown, arcingfiber optic cross connect cabinet Mechanical Durability Test : ≥1000 times

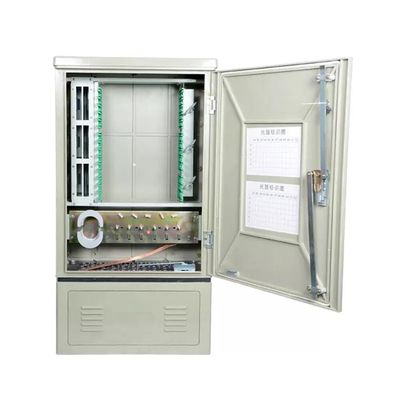

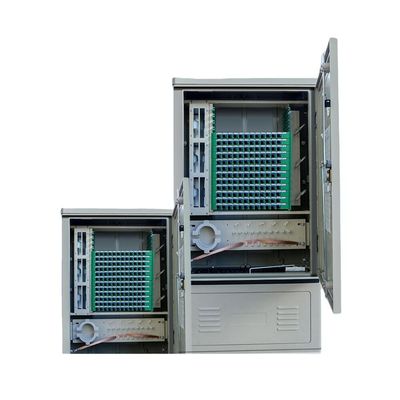

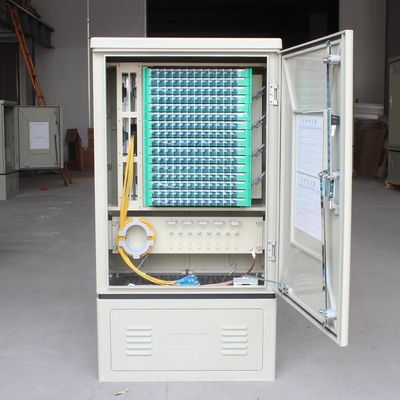

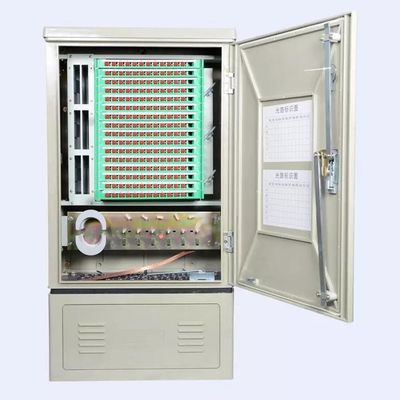

More photos for reference:
