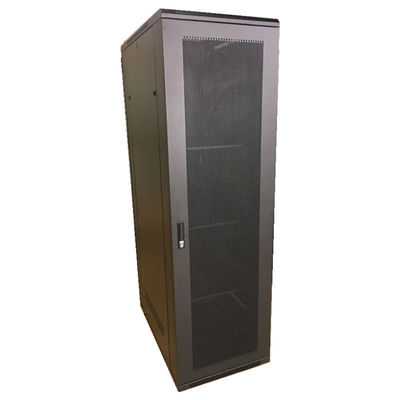

47U Rack Mounting Cabinet Server Racks And Patch Racks With Glass Door 600*600*2200MM
Tags: Data Center Rack, Internet Server Cabinet, Server Network Rack, Server Rack Enclosure, Floor Standing Server Rack
Specification:
| Type | Wall Mount or floor standing Server Rack Cabinet |
| Wall Mount Capacity | 4u,6u,9u,12u,15u,18u |
| Wall Mount Size | 600x450,600x600 |
| Floor standing Capacity | 12u,15u,18u,22u,27u,32u,37u,42u,47u |
| Floor standing Size | 600x600,600x800,600x1000,800x800,800x1000 |
| Color | Black or Grey |
| Top Cover: | Cable Entry |
| Door | Glass Door |
| Warranty | Limited Life |
| Product Keywords | Wall Rack Network,4U Wall Rack Network,Server Rack 4U |
Description:
The customizable 47U rack is configured to be compatible with almost all server manufacturer’s equipment.
47U Racks feature a symmetrical frame to allow enclosures to be bayed in space-saving layouts, including side-by-side, one in front of another, in a corner, in U or T arrangements, all without the need for an expensive intermediate frame.
The 16-fold frame design allows for the integrated channel above-the-joint on the horizontal frame section, which prevents liquid from collecting on the gasket and from penetrating the door or side panel when opened.
The frame system provides multiple internal surfaces and points for mounting equipment and accessories. The top panel of the47U Rack is secured with the standard eye-bolts.
Whether you require a top panel for cable entry or for ventilation, it can be quickly replaced by loosening 4 screws. This stable, static design permits the use of roof-mounted cooling units.
An integrated water/dust protection lip protects the gasket roof configurations.
Features:

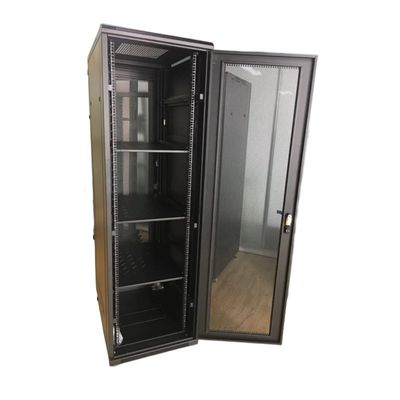

1. Glass front door
2. Sheet steel rear door
3. Detachable side panels
4. Bottom and roof panel with ventilation holes
5. 4 x 19 inch profiles with height indications
6. Doors can be installed both left and right handed
7. Cable entry at top and bottom
8. 19 inch profiles with vertical cable opening
9. Front door, rear door and sidepanels with locks
10. Supplied ready to use
11. Maximum load weight: 800kg
12. Completely dismountable
Application:
It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's.
It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.
Package:
Fully assembly or flat package
Whole package: The cabinet have been assembled. The whole cabinet is packed into one export carton.
Flat package: The cabinet is disassembled and packed into 2 or 3 export cartons.
List:

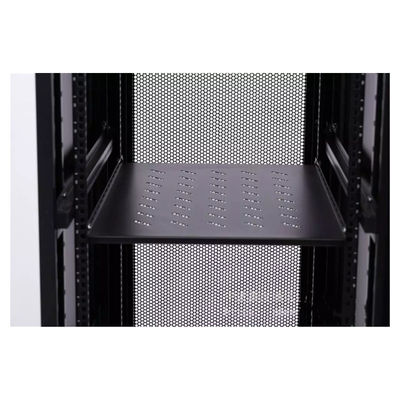

1 x network cabinet,Hardware,2 set of keys,3PC Sliding shelf
Other Optional Accessories

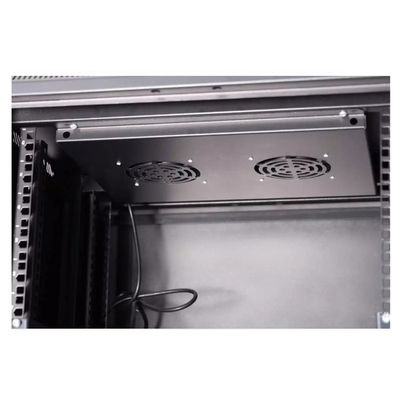

PDU,Fan
Others according to Customers’ requirements
