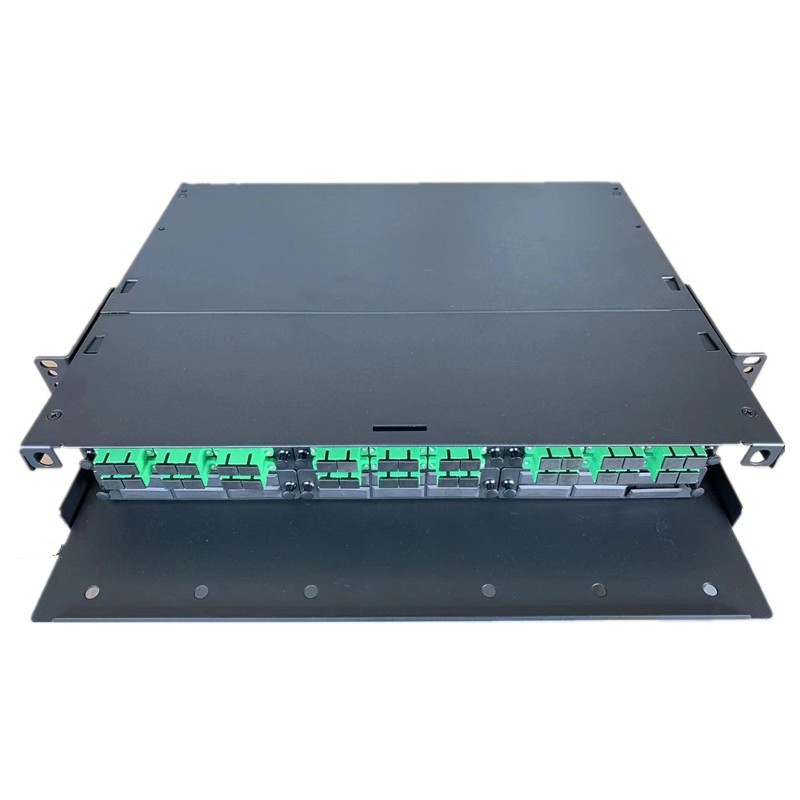

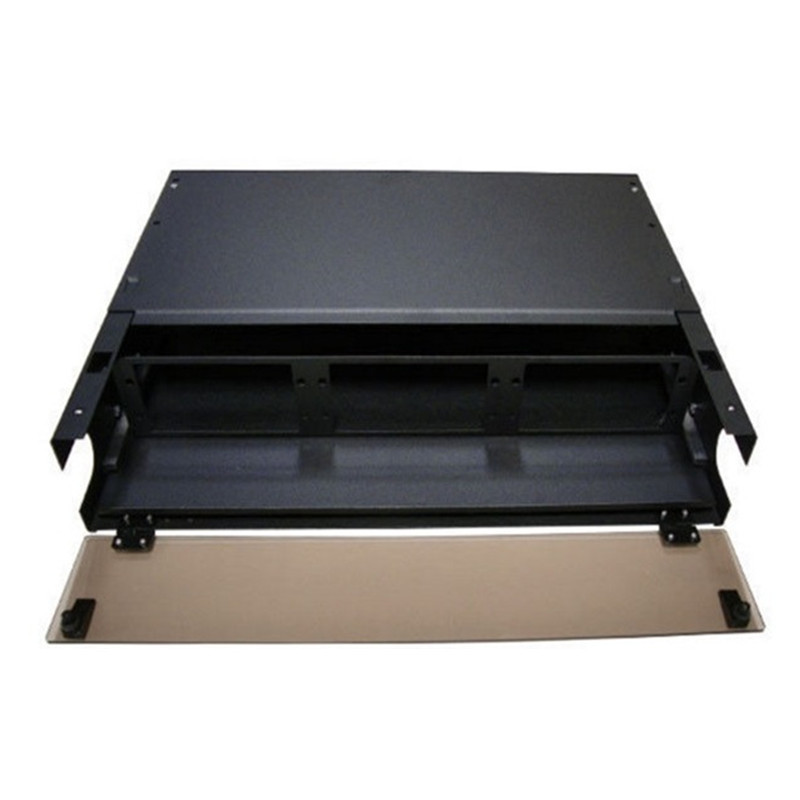

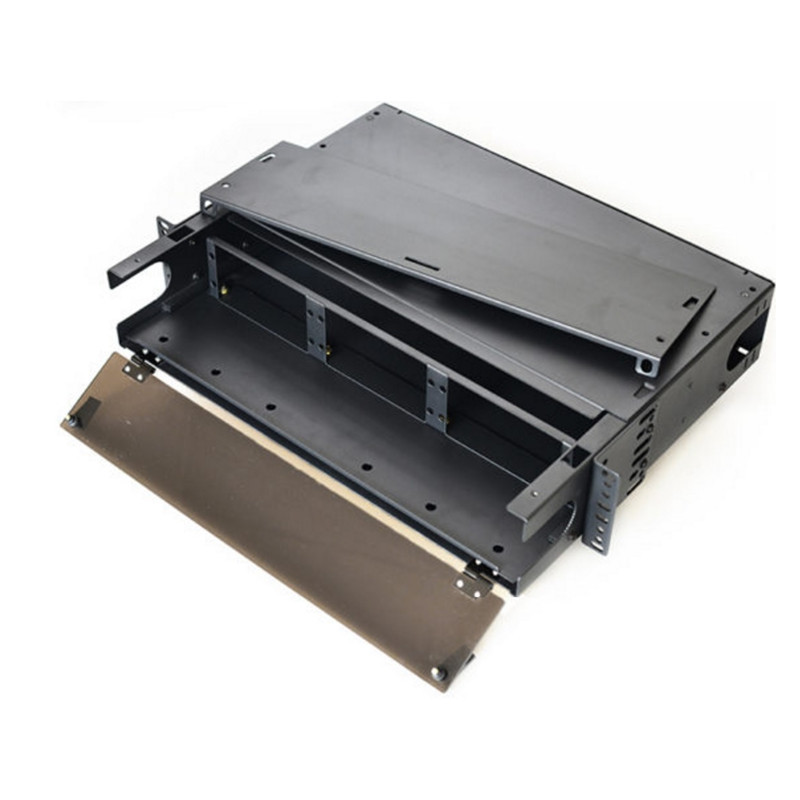

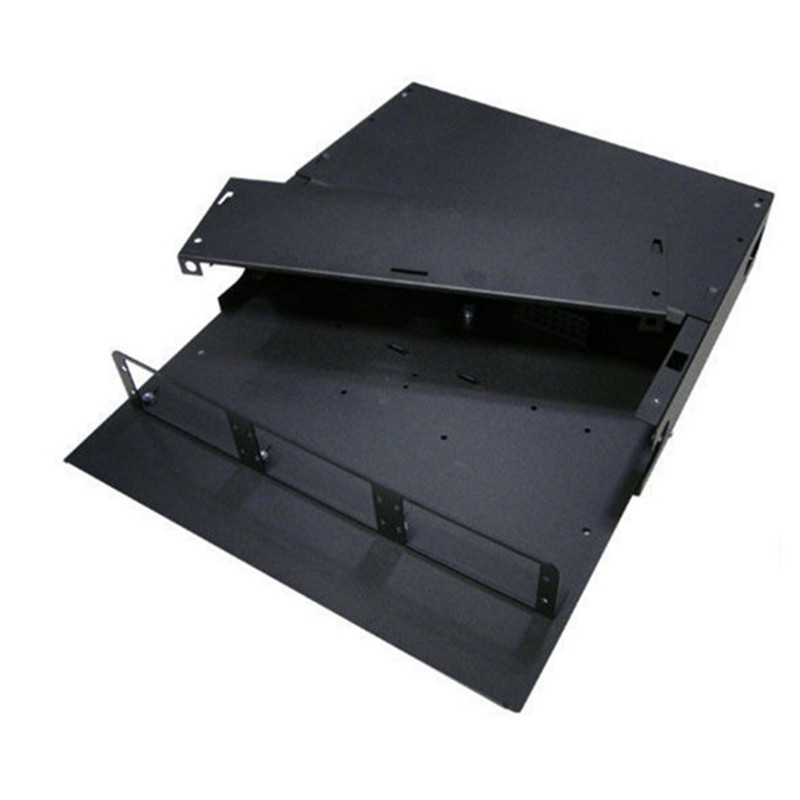

6 Panel Fiber Enclosure Rack Mounted 2U SC APC Duplex Port 36Fibers Slide Out Tray 1.5mm
Description:
Sliding patch panel accepts 6 LGX pass-thru adapter plates for a total of 72FO with LC configuration (36 in SC). Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing.
Easy front access with hinged front and rear removable doors as well as lid.
Specification:
|
Connector Type |
LC,FC,ST,SC or MPO to LC Cassette module |
|
Size |
2U 19inch |
|
Weight |
7kg/pc |
|
Simplex or Duplex |
LC Quad or SC Duplex |
|
Color |
Black |
|
Material |
Cold Rolled Steel Sheet |
|
Application |
For Cable Distribution |
|
Warranty |
Many years |
Features:
1. 6 Slots LGX in 2U space
2. Up to 144FO in LC
3. Modular with MTP Cassette or Adapter plates

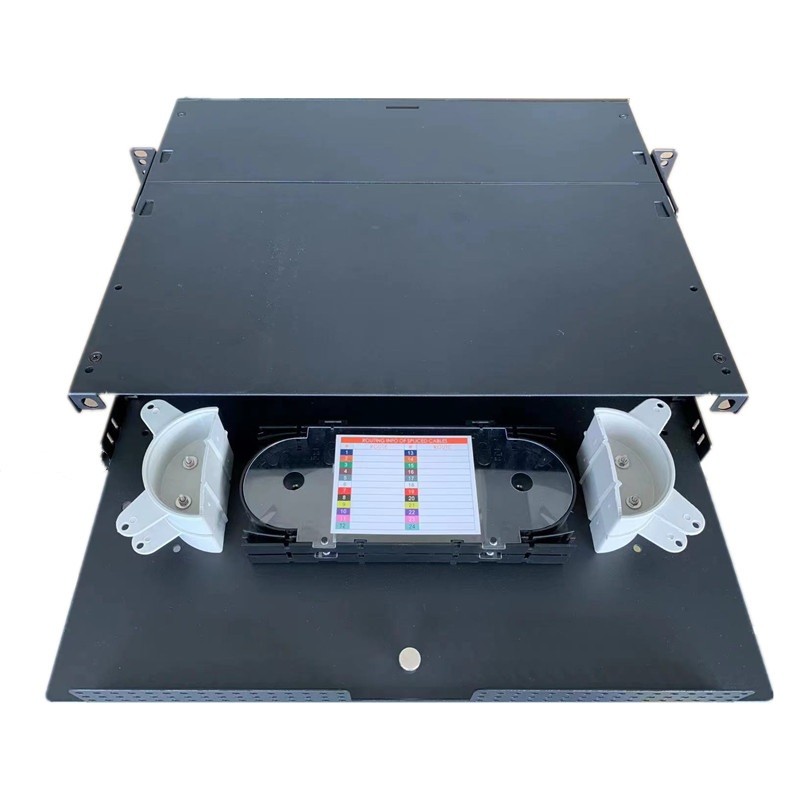

4. Slide-out tray with spring loaded latch
5. Compatible with High Density Fiber Cassettes & Adapter Panels
6. LC, LC/APC, SC, ST, FC and MTP/MPO Configurations
7. Hinged Door on the Rear Allows Easy Access to Adapters
8. Accessories Included for Fiber Cable Entry & Management
Application:
1. Enterprise network & Datacenter
2. Indoor application
3. Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing
