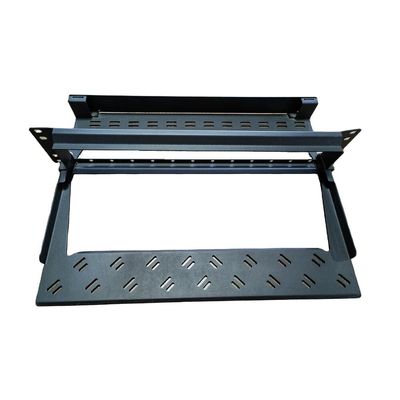

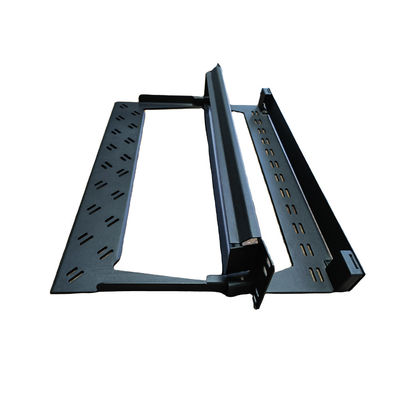

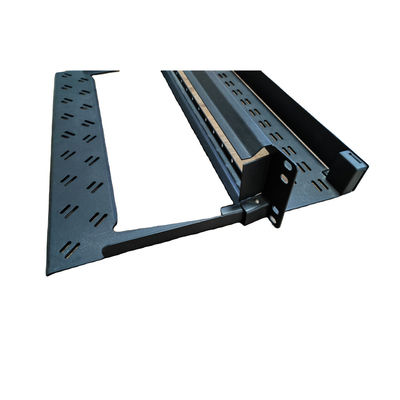

Black Powder Painted Cold Rolled Steel 1U 96F MPO/MTP LC Patch Panel Modular Shelf
Description:
Specification:
|
Parameters |
|
| Model |
TW-1U4MDA01-A |
|
Max. No. of Cores |
96 Cors LC |
|
Main Body Thick |
1.5mm |
|
Max of Splice Tray |
4pcs |
|
Splice Tray Type |
24 Fibers |
|
Color of Splice Tray |
Black or White |
|
Material |
Cold rolled steel sheet |
|
Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO/MTP to LC |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*338.5*43.6MM |
|
Weight (kg) |
4kg |
1. EIA19″; 1U; 144 fibers
2. Designed for MDA, IDA or HDA data centres;
3. Very high density capabilities;
4. Suitable for MPO and MTP;
5. Modular design;
6. Sliding modules.
1. High Density, only 1U height and 19″ size, Space saving.
2. Panel can scale up to 96 strands LC front ports and up to 8 MPO rear ports.
3. Quad LC adapters to reduce space requirement.
4. Fast Deployment – Factory pre-populated panel saves installation time – Plug and Play.
5. Available in OS2, OM3, OM4, OM5 fiber grades
6. Factory installed and tested MPO components feature superior optical and mechanical performance
7. Cost effective, direct factory and manufacturer of the MPO patch panels, cables and components.
Application:
High Density 96Fibers 1U 19” Breakout Fiber Patch Panel are used in high-density network applications as specified in the Data Center Cabling for cross connects in main distribution,
horizontal distribution, and equipment distribution areas.
